7-Speed Gearing

M20 is fully equipped with a Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

Adjustable Seat

The seat is adjustable, suitable for people with a height of 5.0-6.8(ft) to ride.

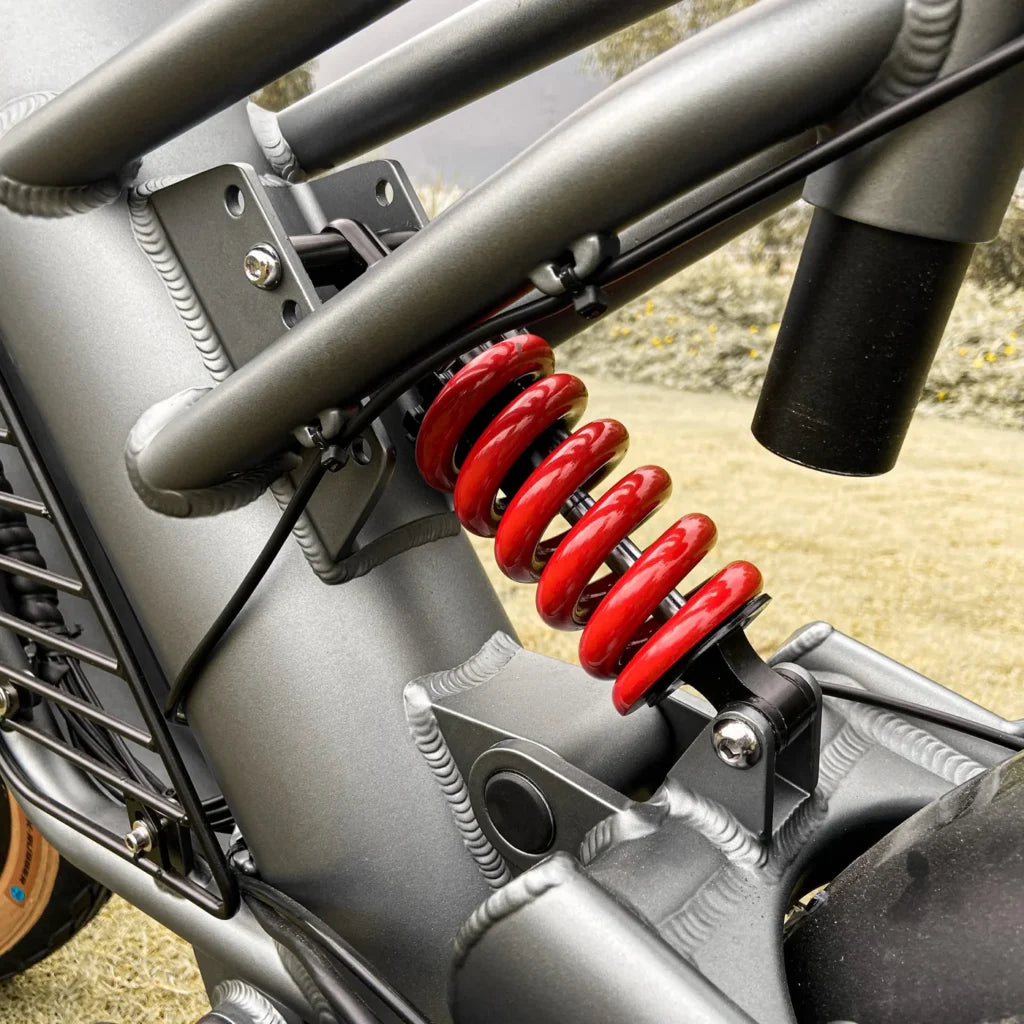

Front Rear Suspension

Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.

Adjustable Frame Height

By adjusting the height of the rear suspension, the height of the bike can be adjusted up or down.

Performance

• Torque: 50N.m, can climb 25 degrees slope, off-road commuting ebike
• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
• Motor: 48V 1000W peak Brushless Rear Hub Motor 50N.m
• Battery: 48V 15Ah Battery (Lithium 18650 Cells)
• Energy: 720Wh
• Front Suspension: 20″ Shoulder Shock Absorbing, 80mm Travel
• Brakes: Line Brake, Equipped with 160mm Stainless Brake Disc
• Tires: Road Tire 20″*4″
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 48V 22A
• Front Light: LED
• Rear Light: LED
• Pedal Assist: 3 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Bend Handlebar

Geometry

• Suitable Height: 5'1" - 6'8"
• Seat Height: 33.9" (86cm)
• Bike Height: 41.3" (105cm)
• Wheelbase: 43.3" (110cm)
• Handlebar Width: 29.1" (74cm)
• Bike Weight: ≥71lbs (with Battery) (≥32kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 64.2" * 29.1" *41.3" (163*74*105cm)
• Package Size: 55.1" * 12.6" * 31.5" (140*32*80cm)
